Real Time Analyzer

A Real Time Analyzer for the iPhone, iPad and iPod Touch. Test your speakers, tune your room, do acoustical analysis work or just have a better understanding of audio frequencies. RTA is a professional-grade acoustical analysis tool. All filters meet or exceed ANSI and IEC Class 1 specifications.
Includes Octave and 1/3 Octave modes, with selectable decay times, as well as Peak Hold and true linear Average mode.

*** iOS Microphones

We have analyzied every iOS device, including all of the iPads, all iPhones, and iPod touches, and have created microphone compensation files that are applied automatically. You can trust the results you are getting, often within just a few dB of a far more expensive analyzer. Calibration is updated regularly, automatically, from our cloud-based calibration database.

Upgrade to our iTestMic or iAudioInterface2 to bring your system up to full professional specs.

*** Save and Recall Graphs

You can save and recall graphs, marked with the GPS location, date & time, and your comment, as well as store the image to your photo roll.

Export the data as an XLS formatted file to your computer for inclusion in reports or further analysis.

*** Max and Min Bars

You can also turn on resettable Max/Min bars (see image #4) to capture peaks. Double-tap to reset the bars.

*** Specifications and Devices

The internal iPhone mic has a noise floor near 30 dB, and if your are running iOS 6, clips around 120 dB.

*** Touch GUI

Fully interactive touch GUI features includes scroll up/down, pinch to zoom or compress the vertical dB scale, or swipe horizontally to get a cursor that reads out the exact dB level and frequency across the screen. To make the cursor disappear, swipe it off the graph to the left.

The landscape-mode display flips 180 degrees so that you can face the internal mic in either direction.

*** Overlay Curves

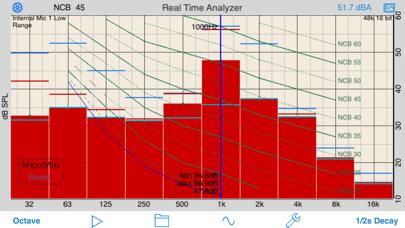

Also included are optional noise curve overlays, in NCB, RC, PNC, NC, X-Curve and NR mode. See picture #2 for an example. Use this feature to get a quick reading on the noise levels in a room. Also includes the cinema large-room X-curve overlay.

*** Calibration

RTA can be fully calibrated, whether you are using it with the internal iOS microphone, or one of our professional test & measurement mic solutions. And, if you are using iTestMic, the mic calibration is transmitted directly to the app, so you are always calibrated.

*** RTA or FFT?

If you are wondering if you should download this app or our FFT app, check out our website, we have a page devoted to this topic.

See our other acoustics and audio apps, including AudioTools.

What's new in version 9.6

-Fixes crash on launch in iOS 9/10

About RTA

RTA is an application developed by Andrew Smith and released on iOS. The app is compatible with iOS 9.0 or later on the following devices: iPhone 11 Pro, X, Xs, SE, iPhone 8, 7, 6, iPad Pro and iPad Mini.

Click the button or scan the QR code below to download RTA for iOS. Check out our downloads section to download RTA for android and other platforms.
